PROROOF Series

R2001

Roof Expansion Joint Cover System

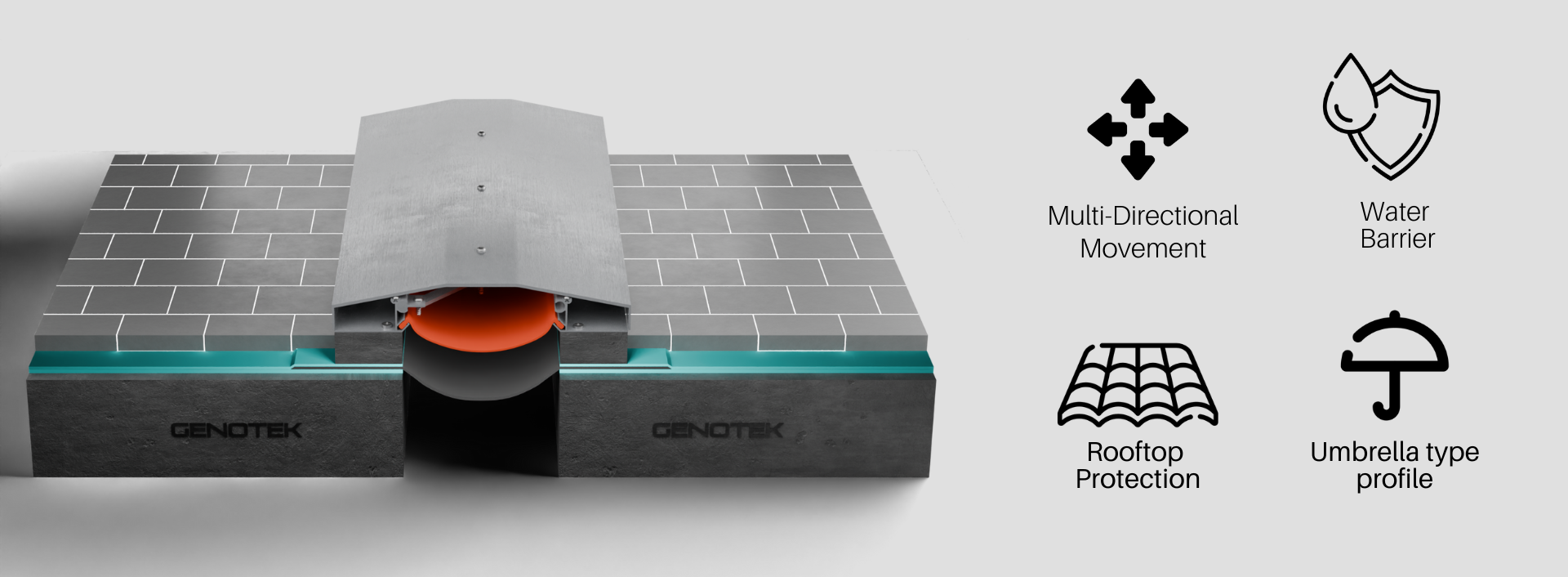

Introducing the R2001

The PROROOF Series R-2001 & RK-2001 is an innovative roof expansion joint cover system crafted for roof areas where seismic and multi-directional movement is essential. This system integrates a full aluminum profile, designed specifically for roofs, ensuring watertight integrity while accommodating movement. Engineered to handle thermal expansion, seismic shifts, and settlement, it provides reliable performance even in challenging environments with low foot traffic.

Seismic and Thermal Movement Absorption

The PROROOF Series effectively manages seismic shifts and thermal expansion, allowing the roof structure to move without compromising the joint’s functionality. This multi-directional capability makes it ideal for areas prone to temperature fluctuations and seismic activity.

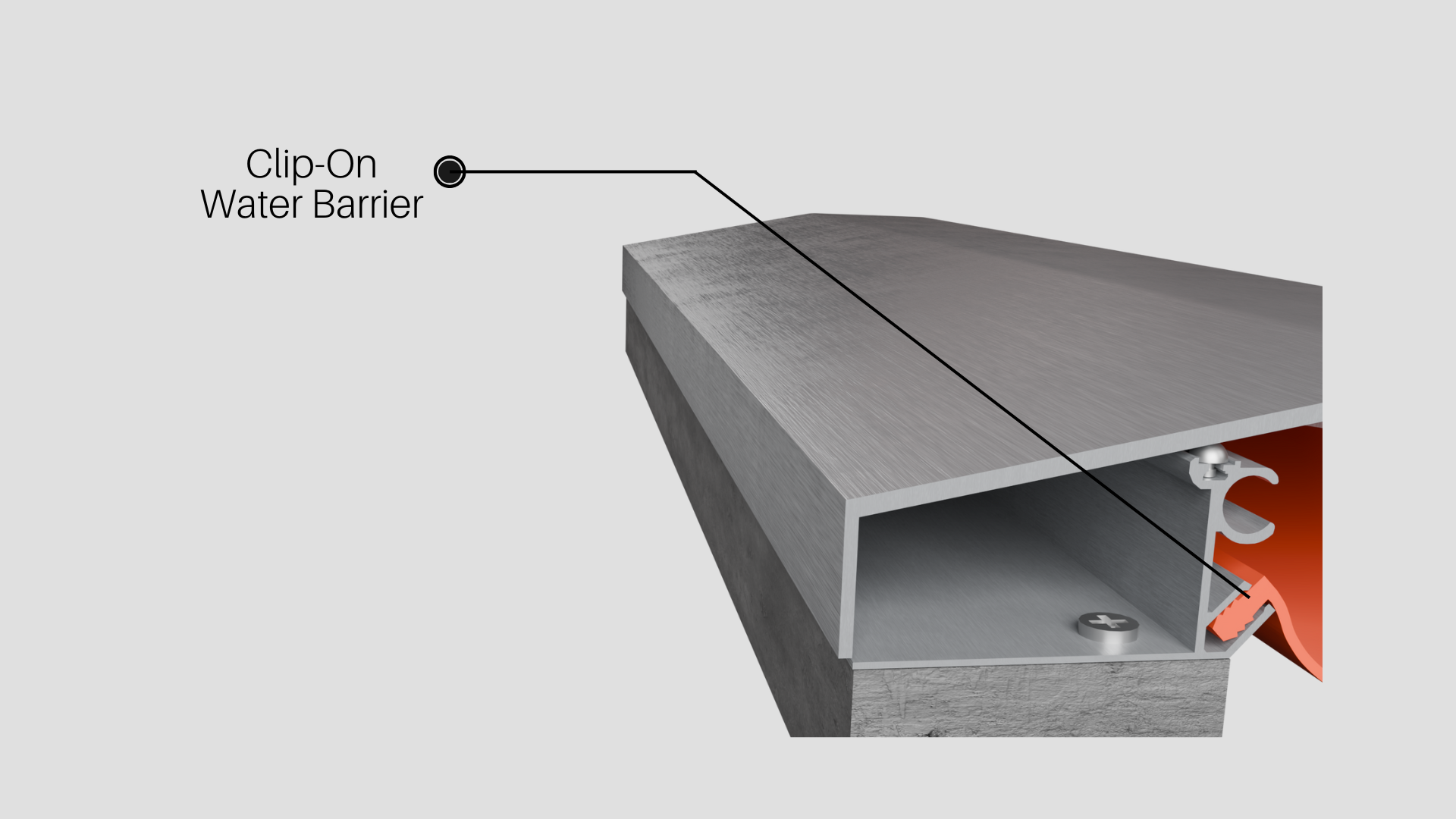

Advanced Watertight Protection

Featuring an integrated water barrier that connects seamlessly to adjacent waterproofing membranes, the LUXSEAL WT ensures complete water resistance without the need for punctures or anchor holes in the barrier. This design prevents water ingress, providing reliable protection in areas exposed to constant moisture

Assembly In Action

This video demonstrates the seamless assembly process. Perfectly designed for durability and reliability.

Multi Finish Compatibility

Profiles can be customized to fit specific project requirements, providing versatility for various roof configurations & Finishes. Standard supply lengths and additional accessories or powder coating are available to meet diverse functional/aesthetic needs.

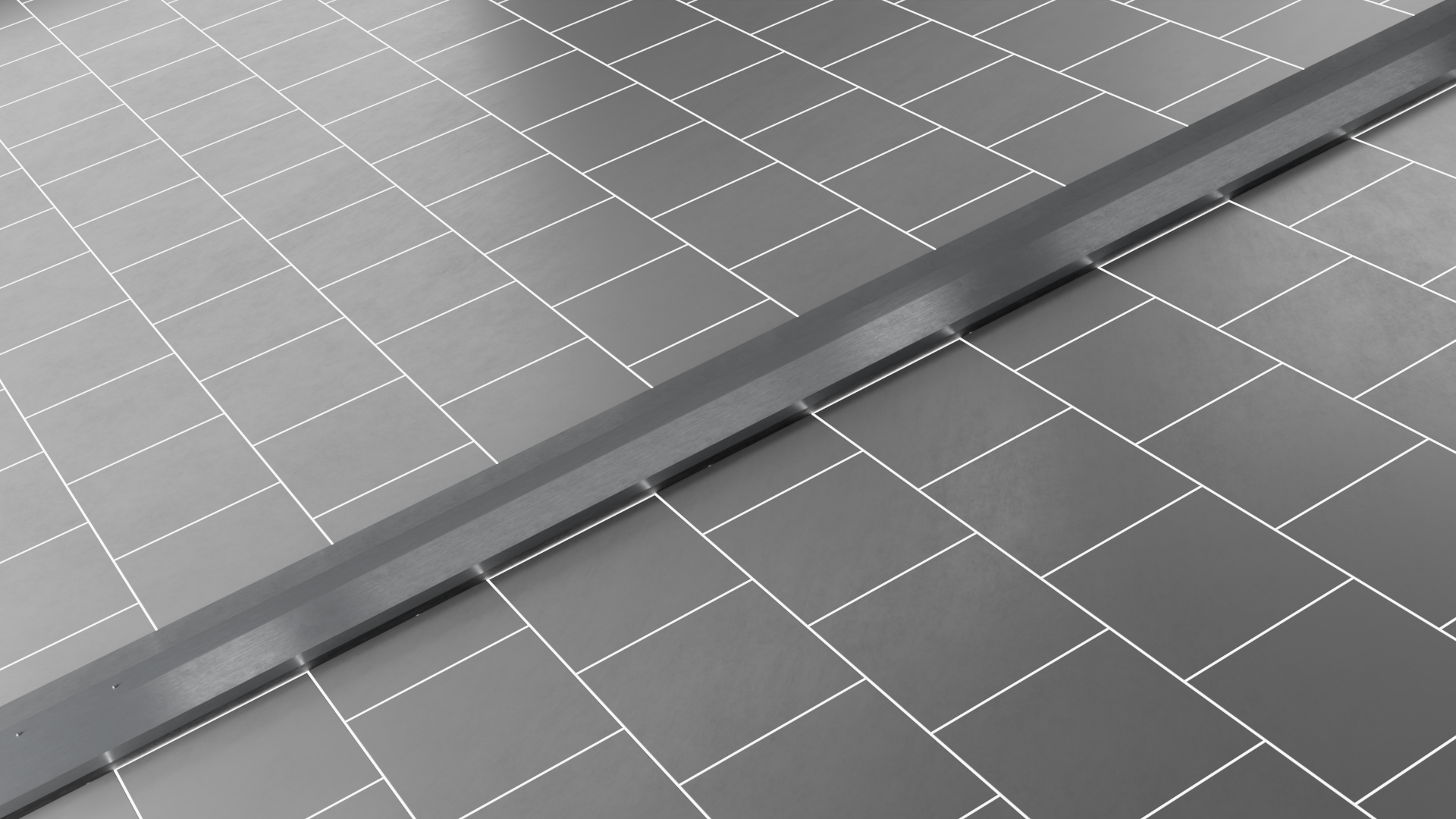

Roof expansion joint cover ,roof tile finish expansion joint cover

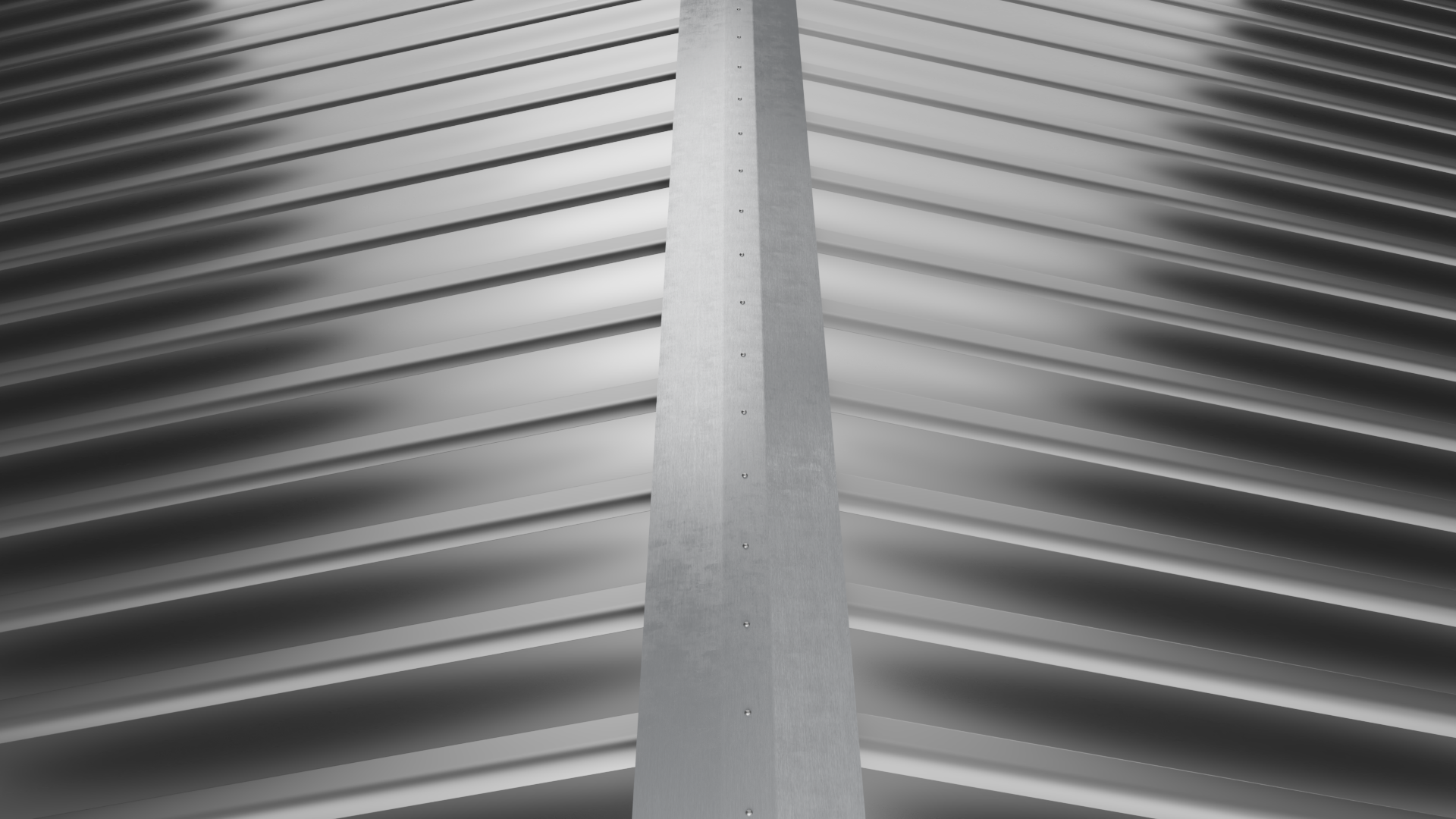

Roof expansion joint cover ,roof metal finish expansion joint cover

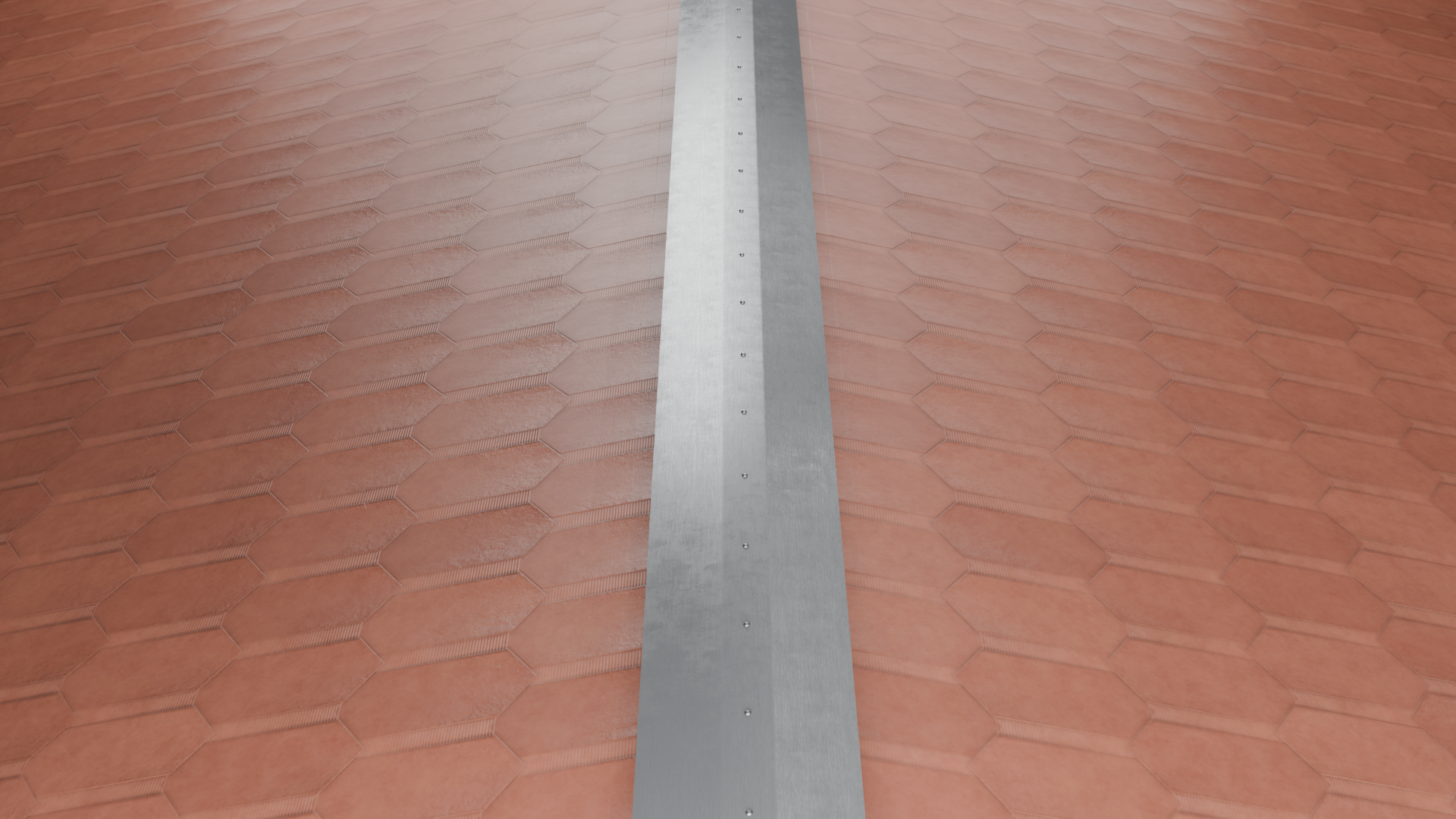

Roof expansion joint cover ,roof paver finish expansion joint cover

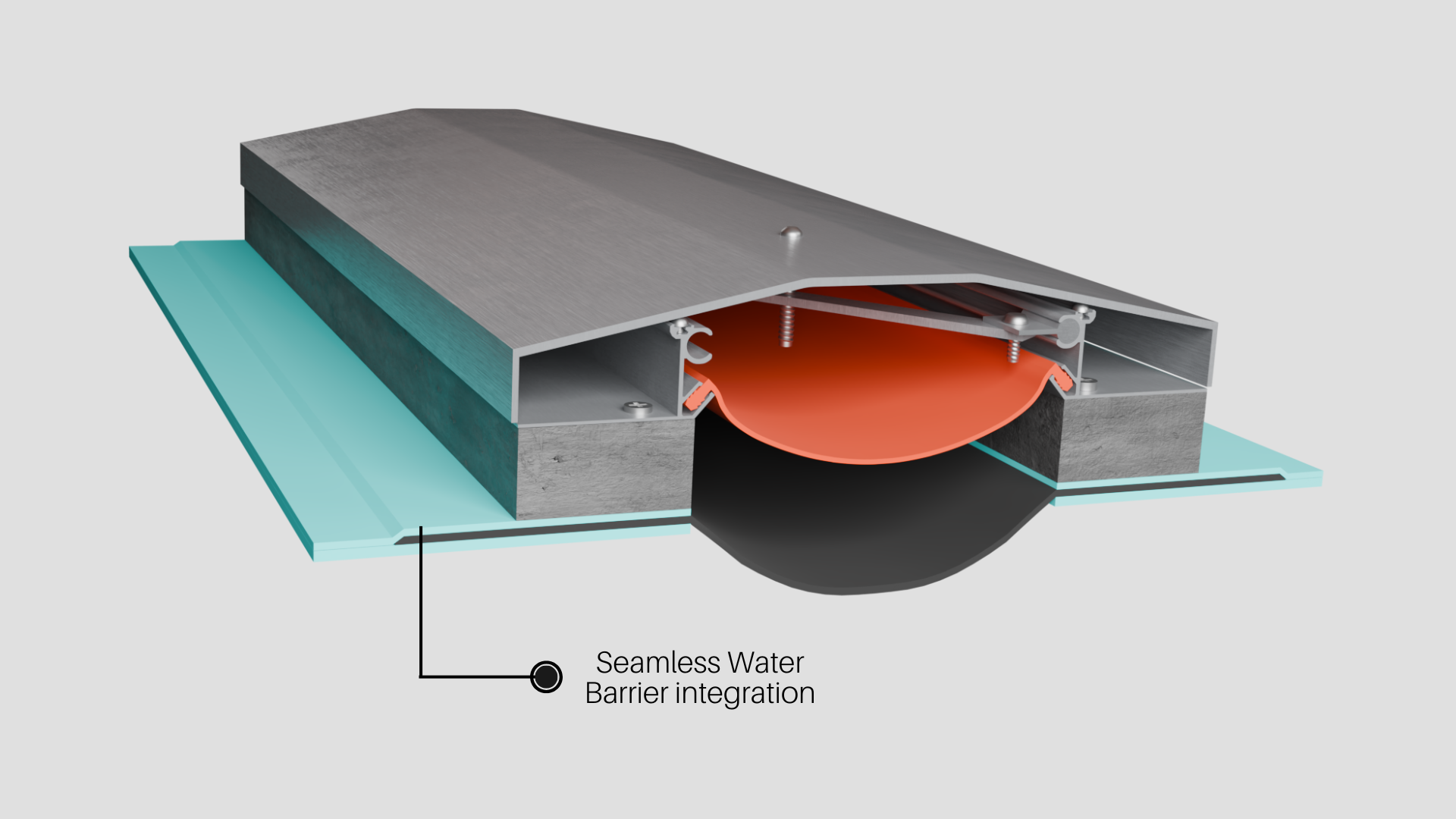

Seamless Water-Barrier Integration

This allows floor waterproofing to seamlessly merge with a continuous water barrier, ensuring a 100% watertight membrane. Designed for ultimate reliability, it eliminates leakage risks, delivering unmatched protection and durability for expansion joint systems.

Roof expansion joint cover ,Genotek, Water proof expansion joint cover , Seismic expansion joint cover

Optional Vapor Barrier

For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration.

Roof expansion joint cover ,Genotek, Water proof expansion joint cover , Seismic expansion joint cover

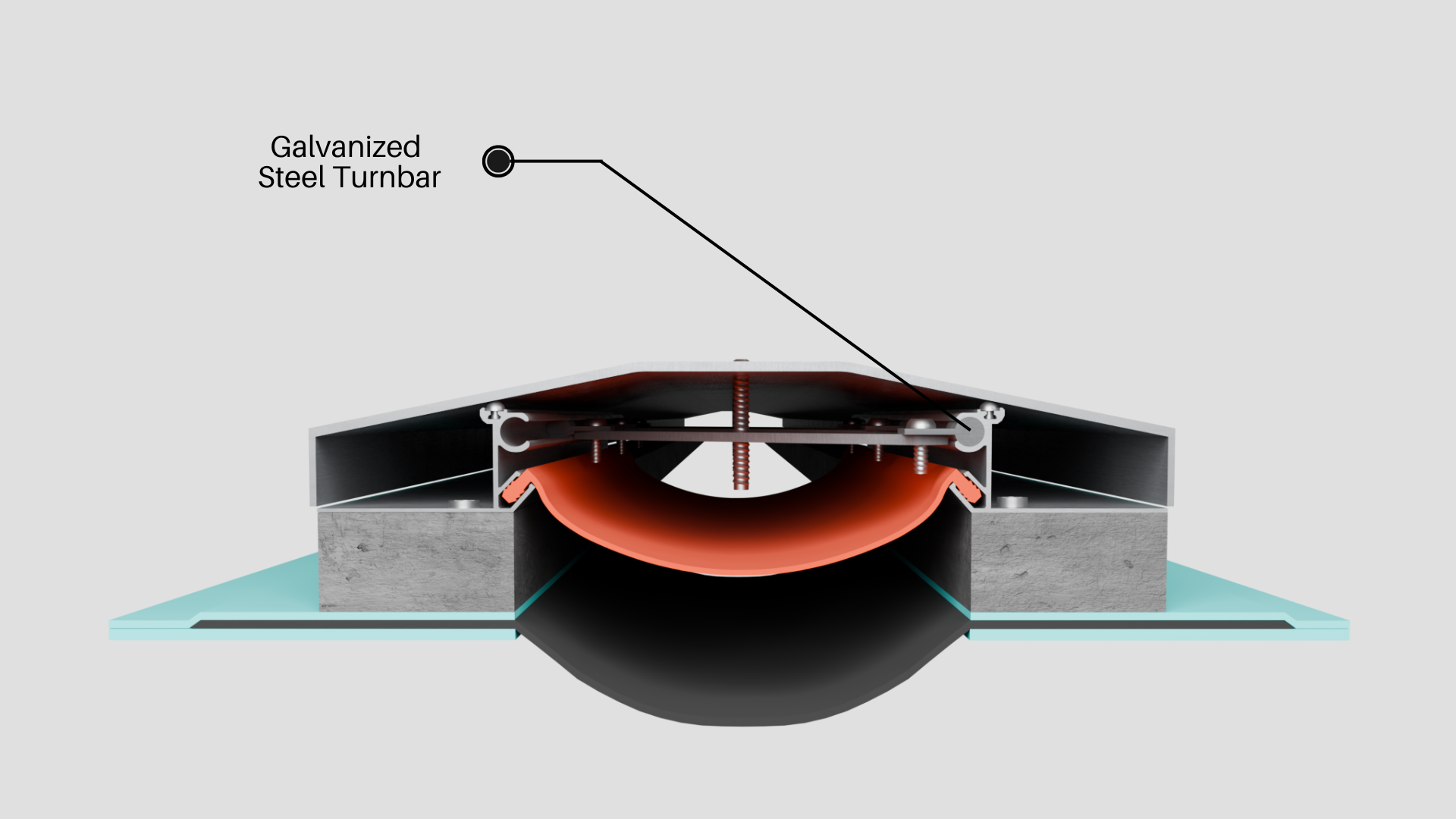

Galvanized Steel Turnbar

A corrosion-resistant galvanized steel turnbar with an "A" coating provides centering and support, ensuring that the cover plate remains aligned during movement, thus extending the life of the system.

Roof expansion joint cover ,Genotek, Water proof expansion joint cover , Seismic expansion joint cover

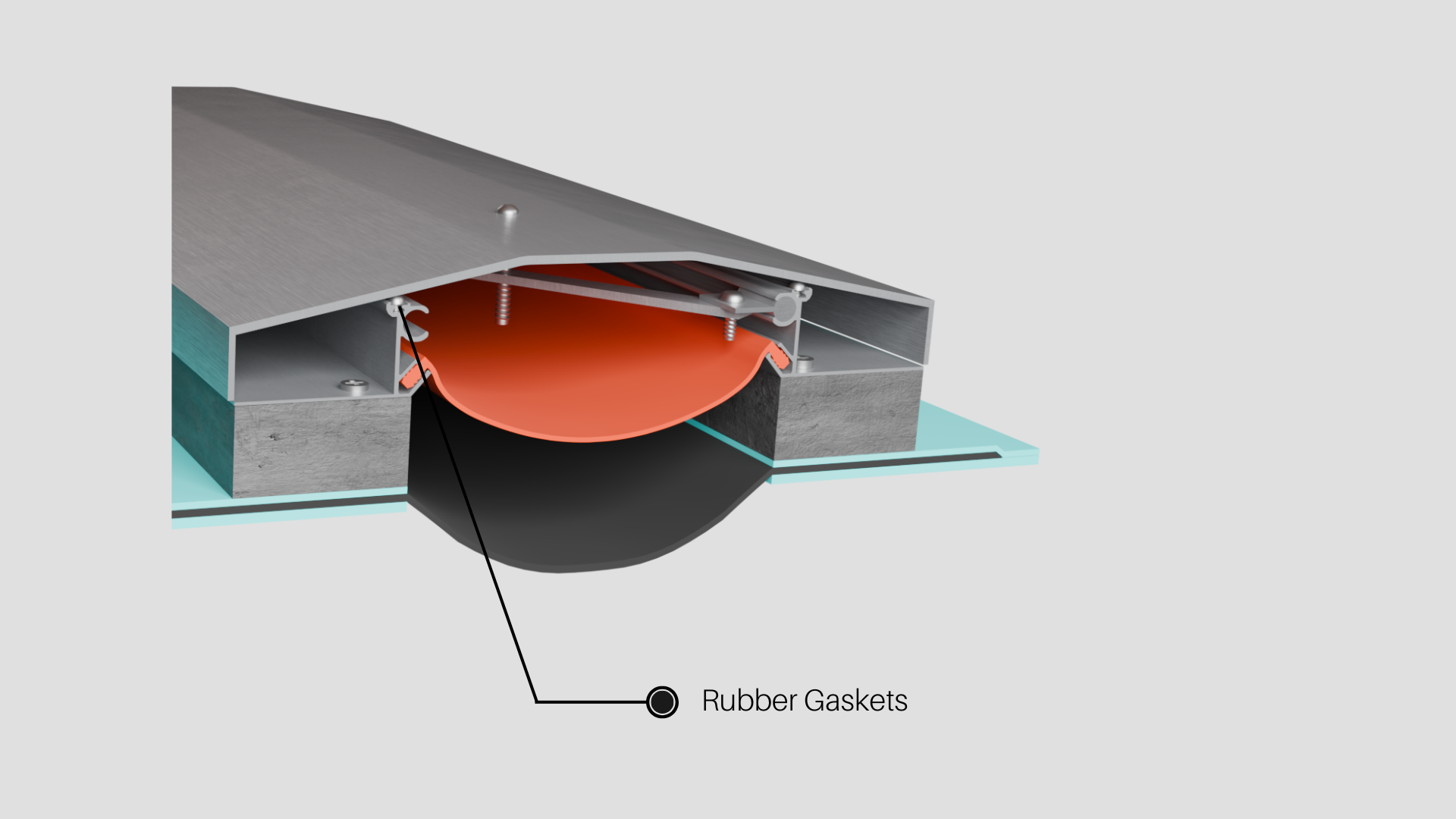

Noise Reduction

Integrated elastomeric rubber gaskets between the aluminum support frames and cover plate cancel out metal-to-metal noise, enhancing acoustic comfort. This feature minimizes noise when subjected to movement, delivering a quiet and efficient joint cover solution for roof applications.

Roof expansion joint cover ,Genotek, Water proof expansion joint cover , Seismic expansion joint cover

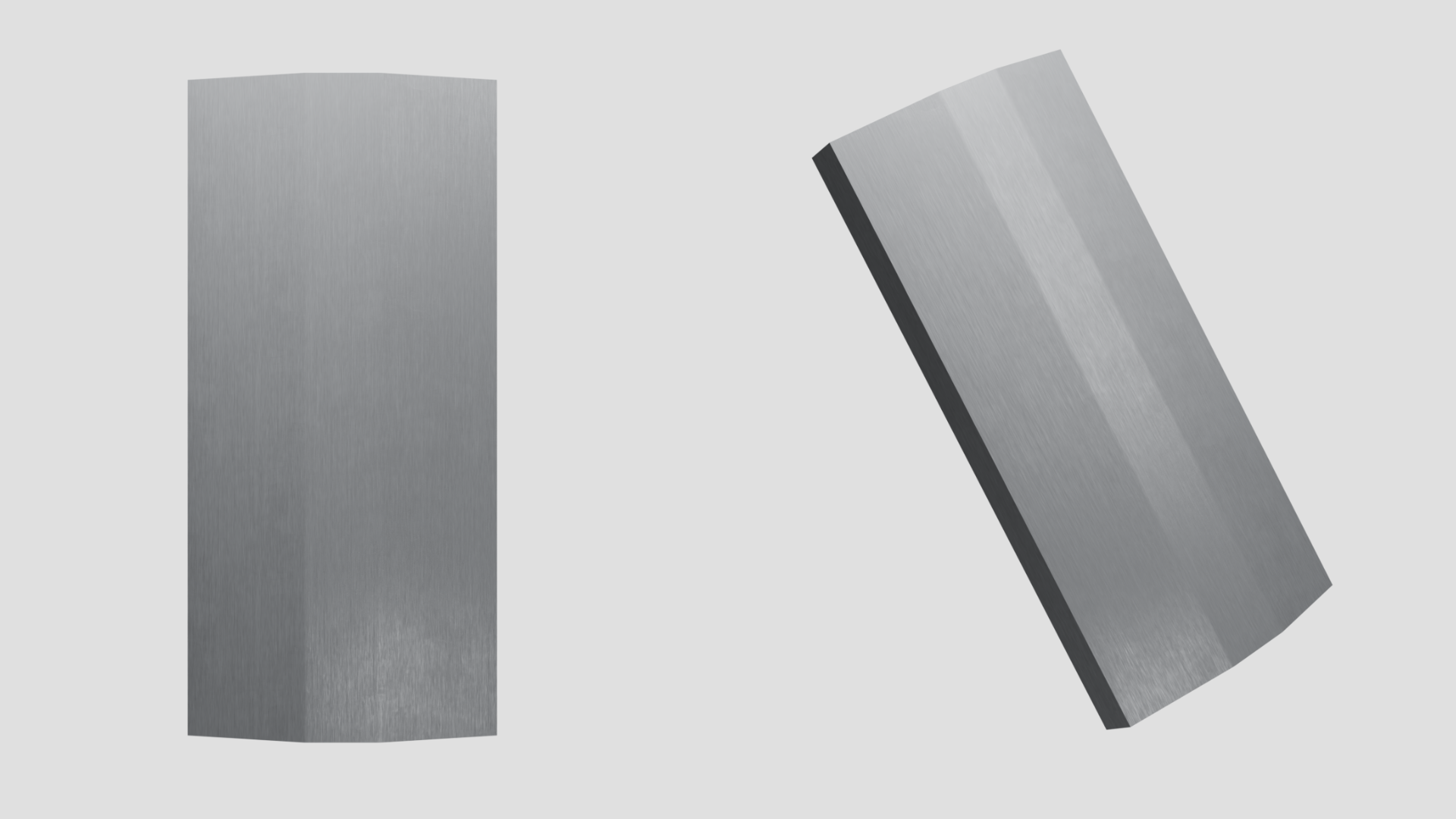

Durable Aluminum Profiles

The PROROOF Series utilizes high-grade AA 6063 aluminum for the support frames and cover plate, ensuring durability, corrosion resistance, and structural integrity. Its robust aluminum composition is designed to withstand exposure to environmental elements over prolonged periods.

Roof expansion joint cover ,Genotek, Water proof expansion joint cover , Seismic expansion joint cover
