ECOGLIDE Series

D 3200

Wall Expansion Joint Cover

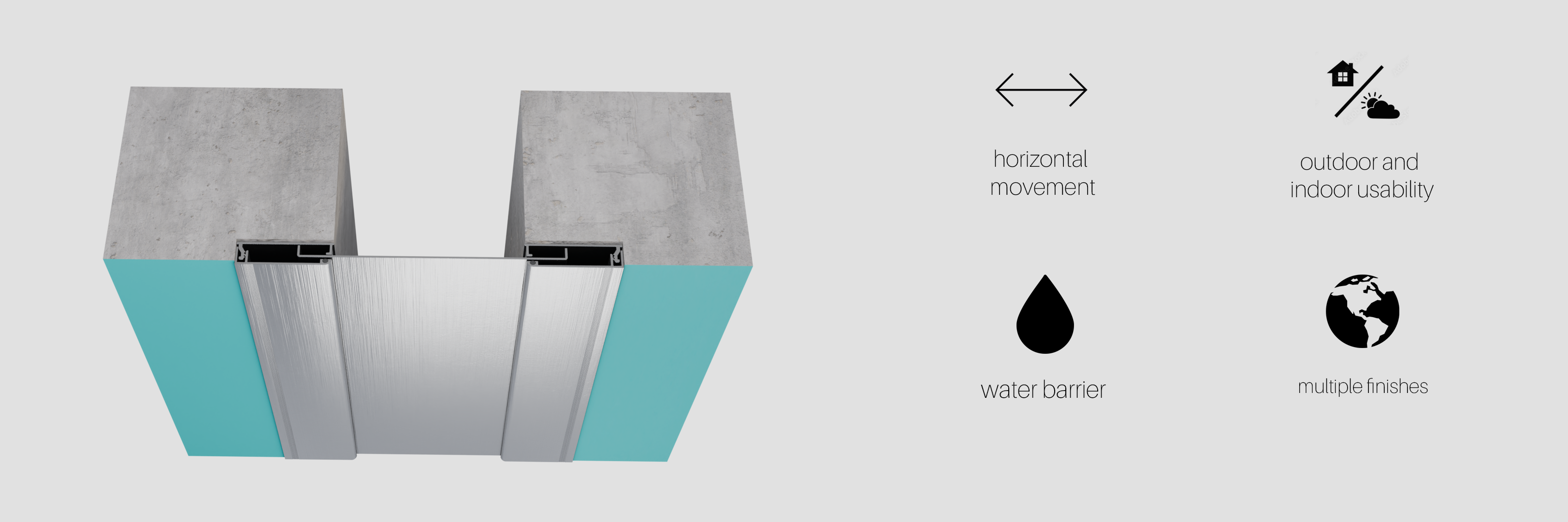

Introducing the ECOGLIDE Series D-3200

a versatile and aesthetically pleasing expansion joint cover designed for wall and ceiling applications. This innovative system features a clip-in design with two cassette-style enclosures and a free-floating center plate, all crafted from durable aluminum 6063. The D-3200 seamlessly accommodates horizontal, lateral, and wind movement deflections, ensuring the integrity of your structure. With its hidden screw system and customizable finishes, the ECOGLIDE Series D-3200 offers a sleek, modern look that complements any architectural style.

Movement Accommodation

The ECOGLIDE Series D-3200 is engineered to handle complex movement scenarios, including horizontal, lateral, and wind movement deflections, as per ASTM E1300. Rigorously tested against ASTM E1399 for cyclical movement, this expansion joint cover demonstrates exceptional durability and wear resistance, maintaining its performance and aesthetics over time.

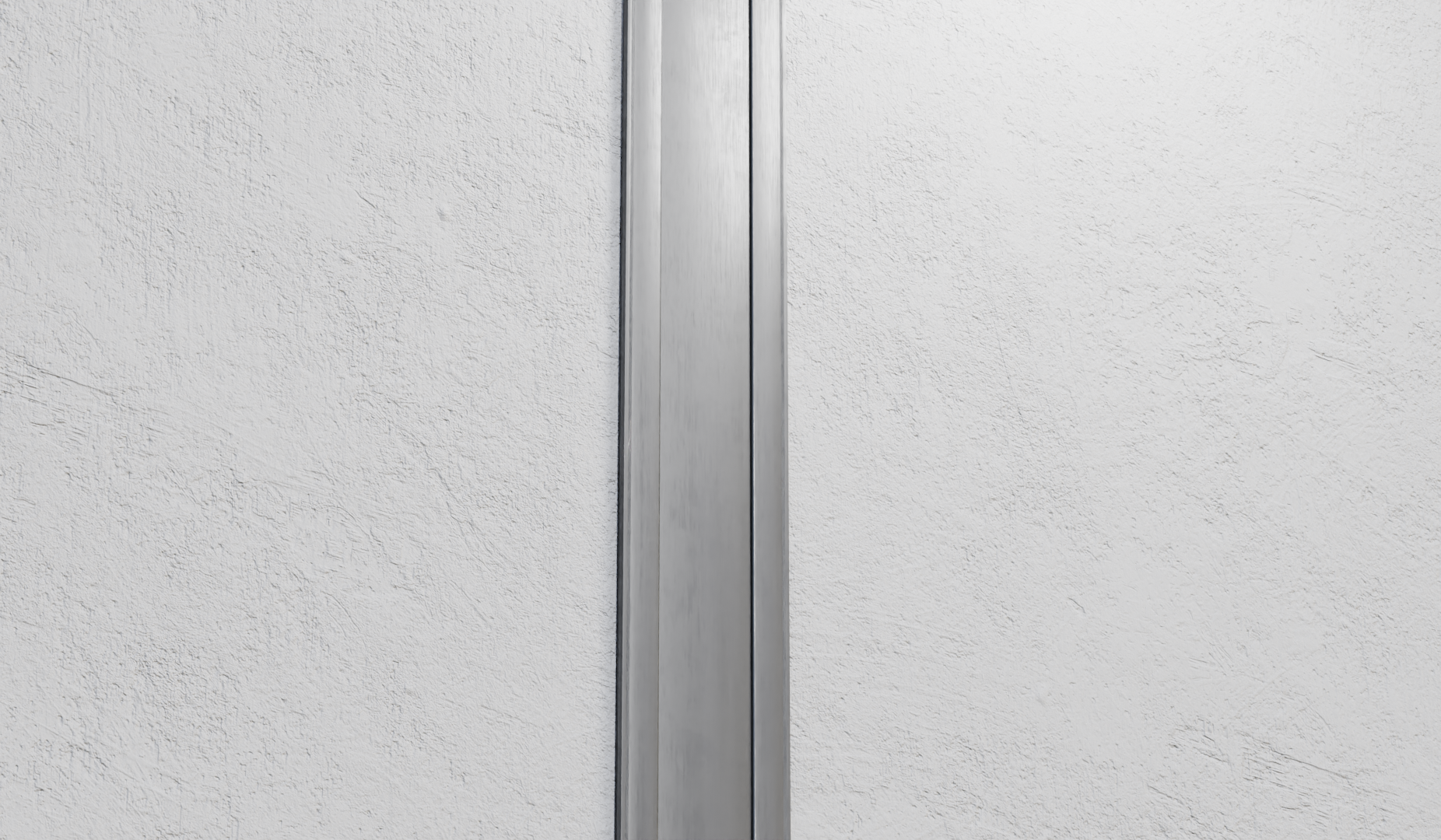

Customizable finishes

The aluminum components come standard with an anodized finish for enhanced durability and rust prevention. The D-3200 can also be powder coated in any RAL color to match wall finishes and create a cohesive look.The aluminum components come standard with an anodized finish for enhanced durability and rust prevention. The D-3200 can also be powder coated in any RAL color to match wall finishes and create a cohesive look.

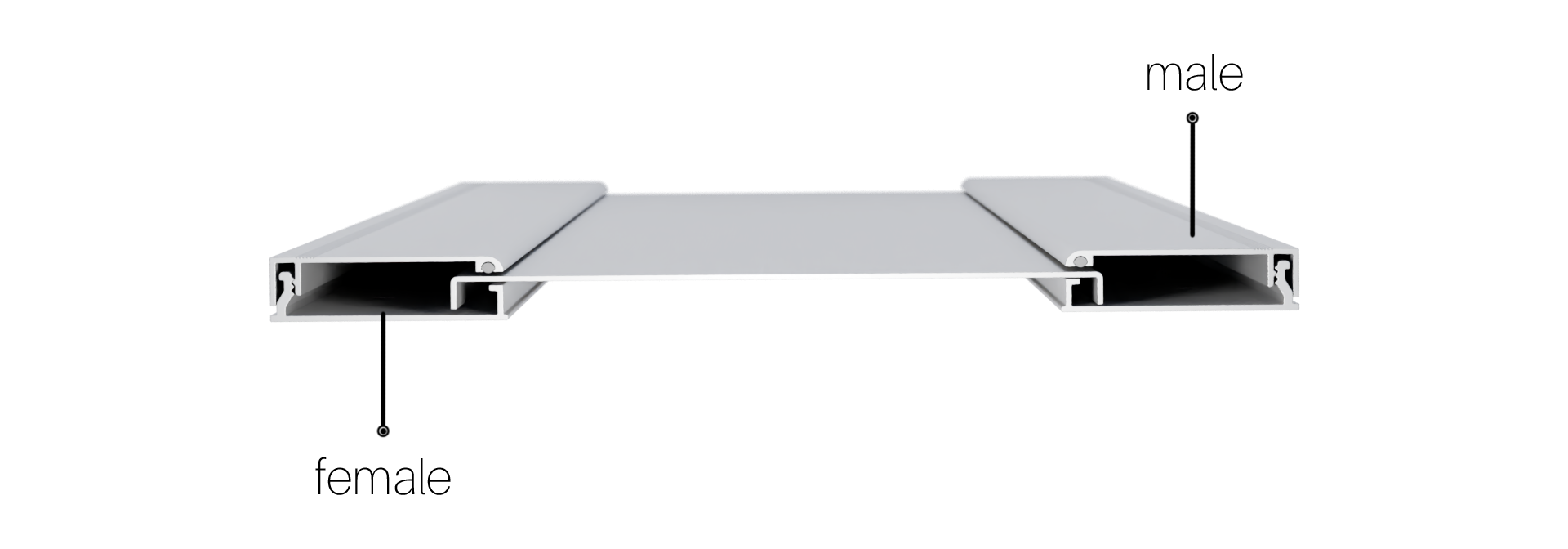

Hidden Screw System

The D-3200's male and female components create a seamless, clip-in design that conceals fasteners, resulting in a clean, attractive appearance.

crosswithlabel-1

Rubber Gaskets

Integrated rubber gaskets seal the air gaps between the center plate and side enclosures, preventing water intrusion and ensuring a watertight seal.

rubberwithlabel-2

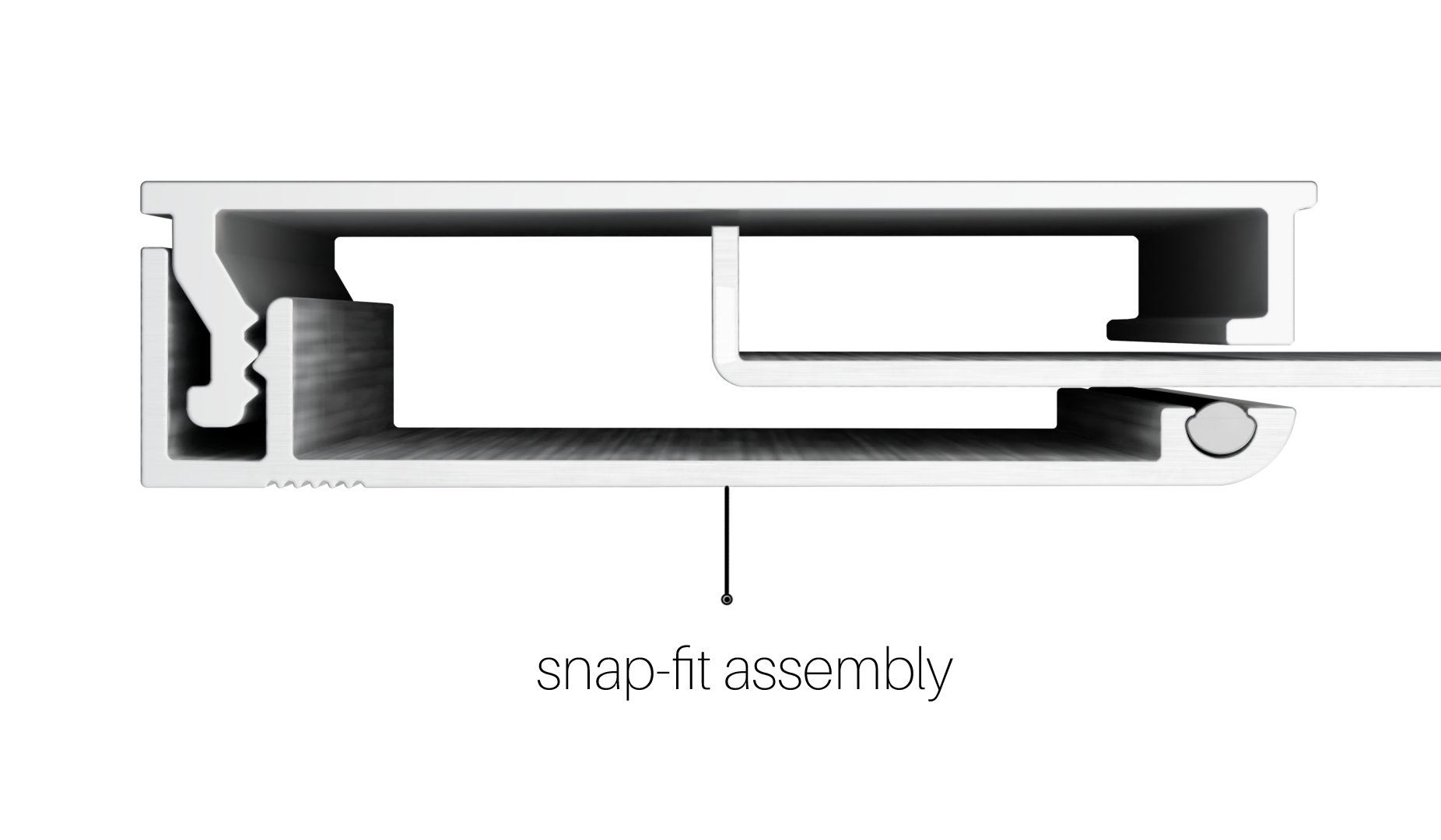

Easy Access

The snap-fit assembly allows for convenient access to the joint's interior for inspection and maintenance purposes.

anodized-1

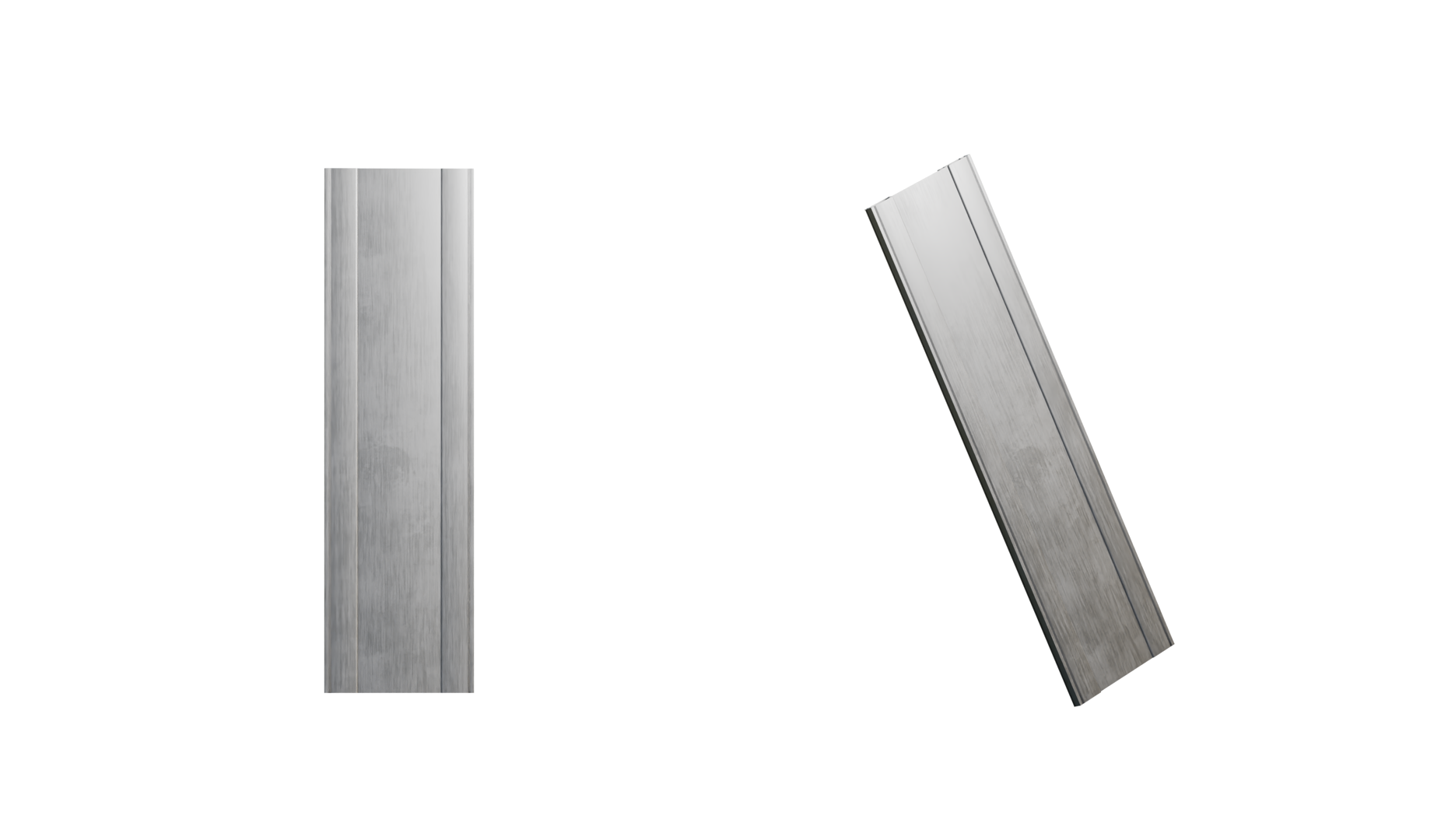

Aluminum 6063

The ECOGLIDE Series D-3200 is fabricated from high-quality aluminum 6063, known for its excellent strength-to-weight ratio, corrosion resistance, and durability. This material choice ensures the expansion joint cover's long-lasting performance and visual appeal.

al-2

SECTION DETAIL

drawing
